Gear Pump (polymer melt pump)

The gear pump is a precise method to ensure constant polymer melt flow, which contributes to the highest quality output. Used in pumping, gauging and pressurizing all high/low viscosity plastic melt

Function

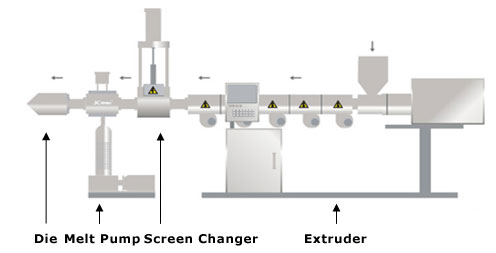

1. The pressure is measured before the fluid enters the gear pump
2. Extrusion speed is adjusted by PLC
3. Constant melt pressure and stable flow rate maintained

Features

• Housing is made of chromium-nickel alloy, nickel-base alloy or titanium alloy
• Gear and bearing are made of graphite, NIAG, zirconium oxide or quench tool steel

Benefits

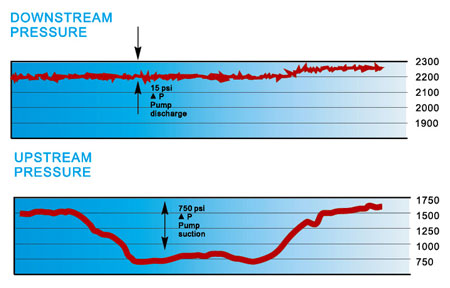

• Improves product quality by eliminating variations in output pressure
• Guarantees accurate gauging
• Ensures constant pressure after pump

Technical Data (download gear pump technical datasheet)

Gear Pump Data For PP, PS, PB, TPE, High Shear Sensitive 0.73g/cm³

Pump Size	Volume cm³/rev	Speed (min [rpm])	Speed (max [rpm])	Output (min [kg/hr])	Output (max[kg/hr])
CGP-50	40	10	120	16	190
CGP-70	100	10	110	40	440
CGP-82	150	10	100	60	600
CGP-110	400	10	90	160	1,440
CGP-130	700	10	90	280	2,240

Gear Pump Data For PE, HD, LD, LLD, HIPS, ABS Shear Sensitive 0.75g/cm³

Pump Size	Volume cm³/rev	Speed (min [rpm])	Speed (max [rpm])	Output (min [kg/hr])	Output (max[kg/hr])
CGP-50	40	10	100	17	170
CGP-70	100	10	90	42	378
CGP-82	150	10	80	63	504
CGP-110	400	10	70	165	1,155
CGP-130	700	10	60	288	1,728

Gear Pump Data For PET, PBT, PC, PA, PMMA, Low Shear Sensitive 1.15g/cm³

Pump Size	Volume cm³/rev	Speed (min [rpm])	Speed (max [rpm])	Output (min [kg/hr])	Output (max[kg/hr])
CGP-50	40	10	90	23	207
CGP-70	100	10	80	58	464
CGP-82	150	10	70	88	616
CGP-110	400	10	60	235	1,410
CGP-130	700	10	50	411	2,055
